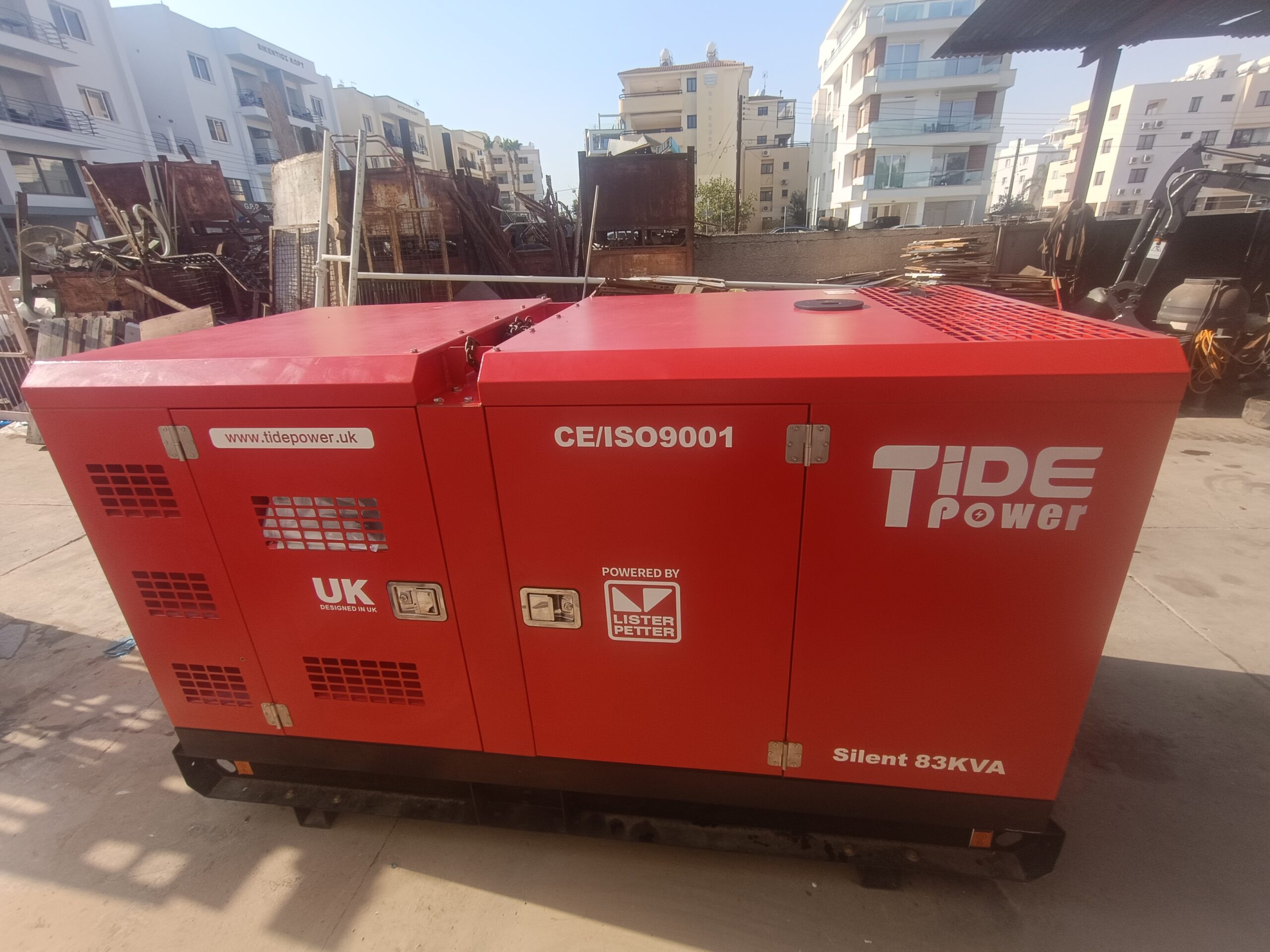

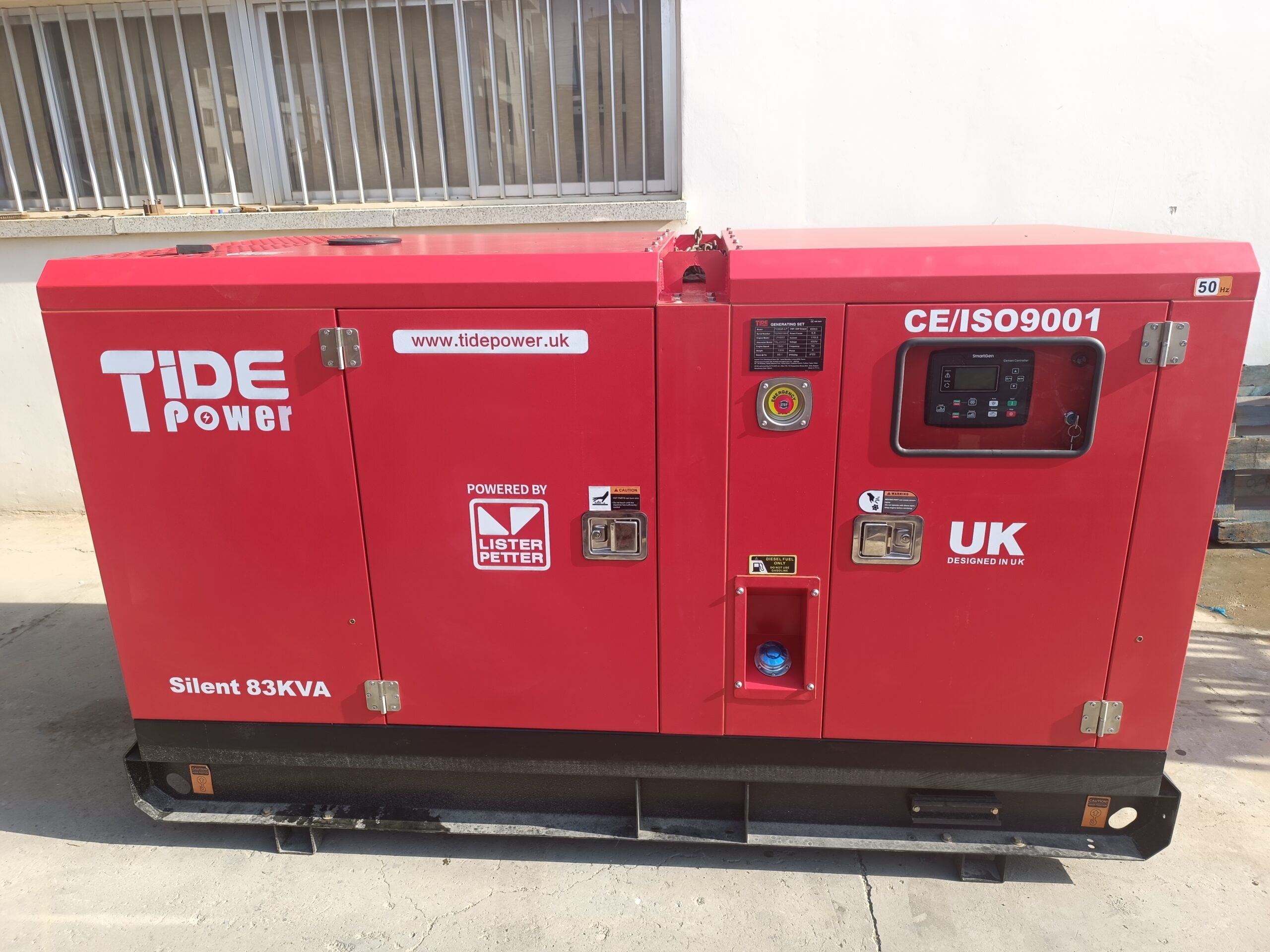

The FC83X-SA is designed for larger commercial and facility loads where dependable standby power is critical. It comes in a robust silent canopy, with a larger base fuel tank, SmartGen monitoring/protection, and proven Lister Petter power.
Key highlights
- Prime Power (PRP): 66 kW / 83 kVA
- Standby Power (ESP): 73 kW / 91 kVA
- Current @ 400V: 119.1 A

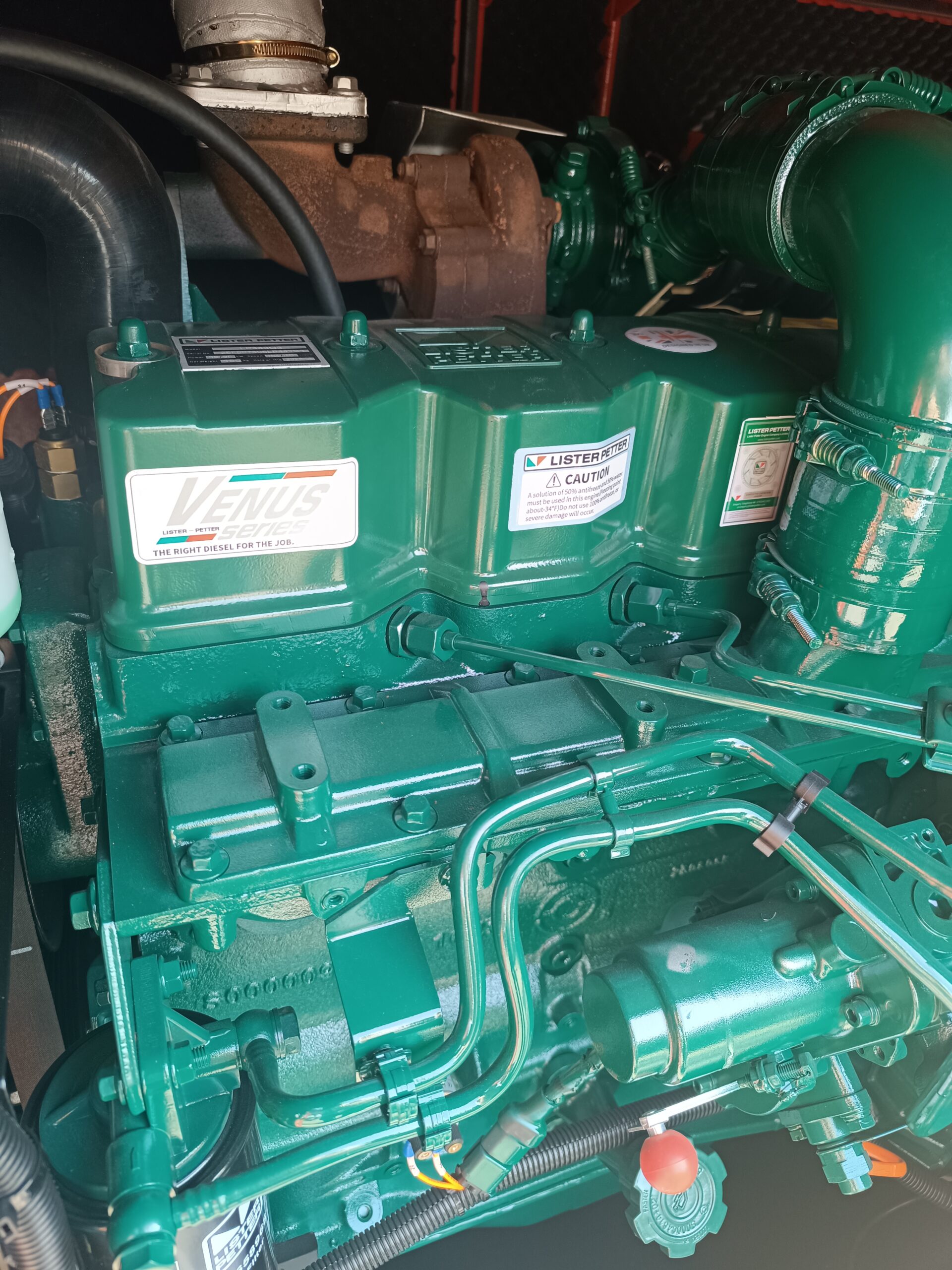

- Engine: Lister Petter UK SA443G3

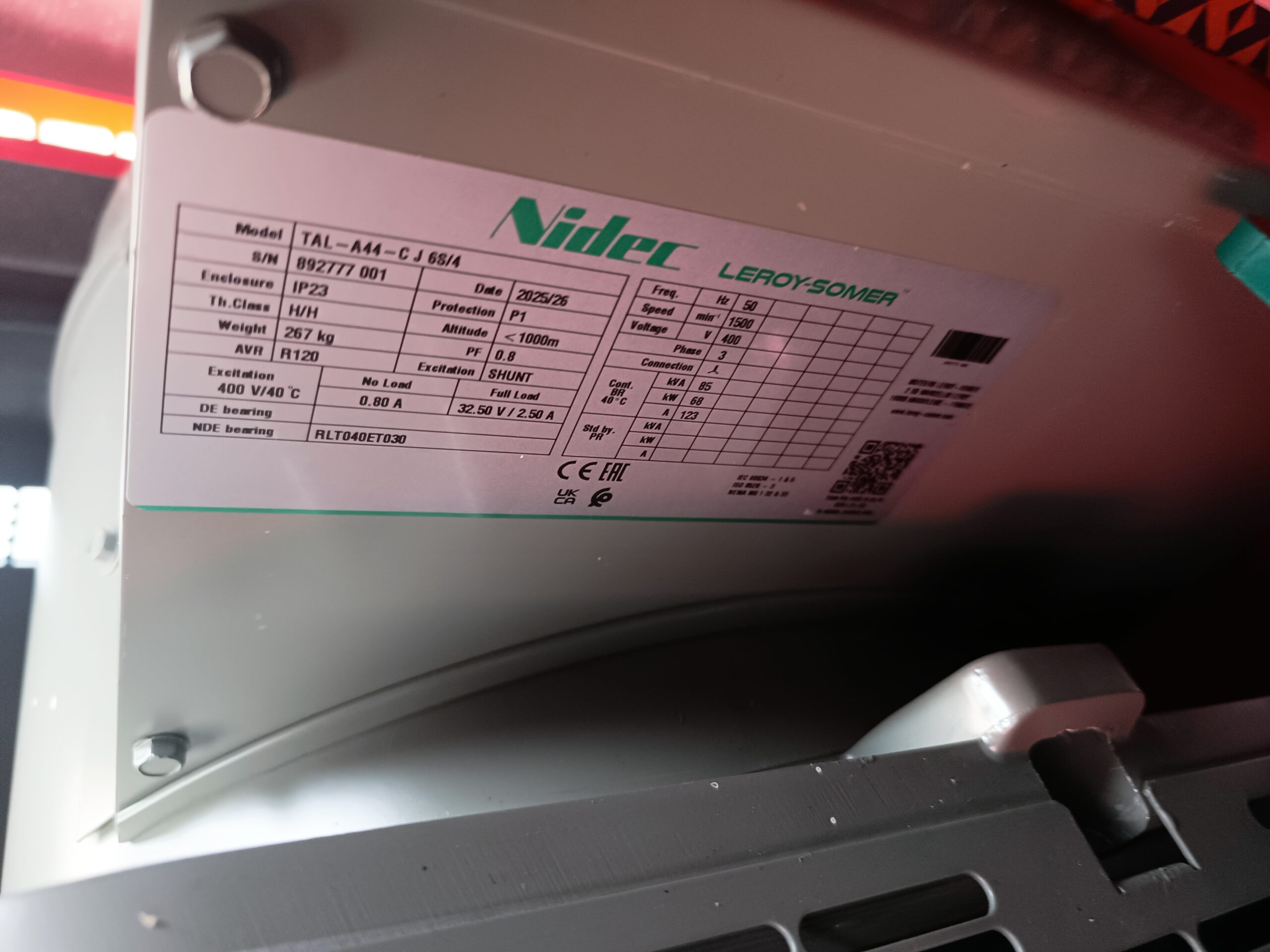

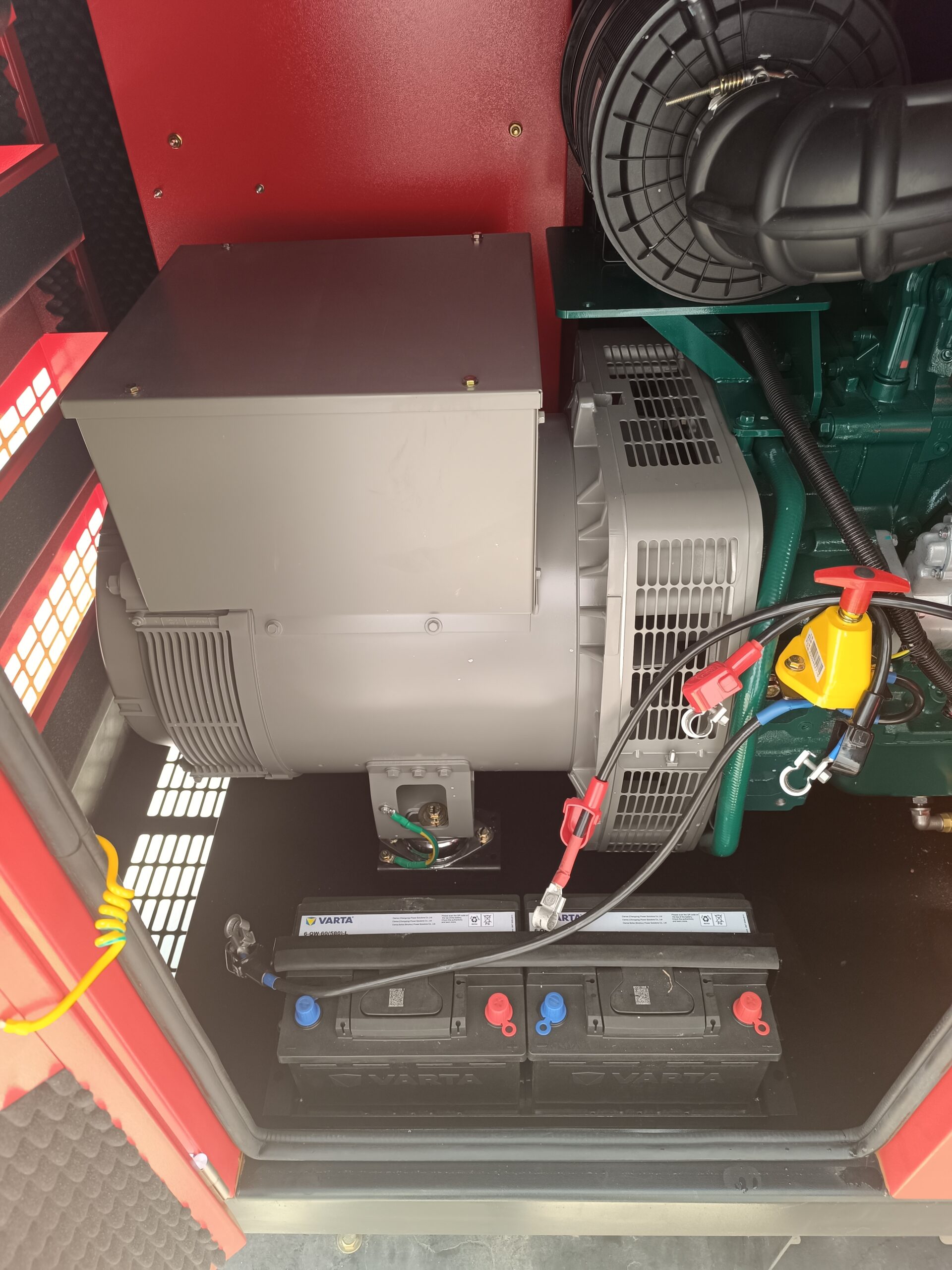

- Alternator: Leroy Somer TAL-A44-C (brushless, self-exciting)
- Controller: SmartGen HGM6120N-4G
Fuel consumption (typical)
- 100% PRP: 19.5 L/h
- 75% PRP: 14.33 L/h
- 50% PRP: 9.46 L/h
- 25% PRP: 5.27 L/h
- 110% standby: 21.45 L/h

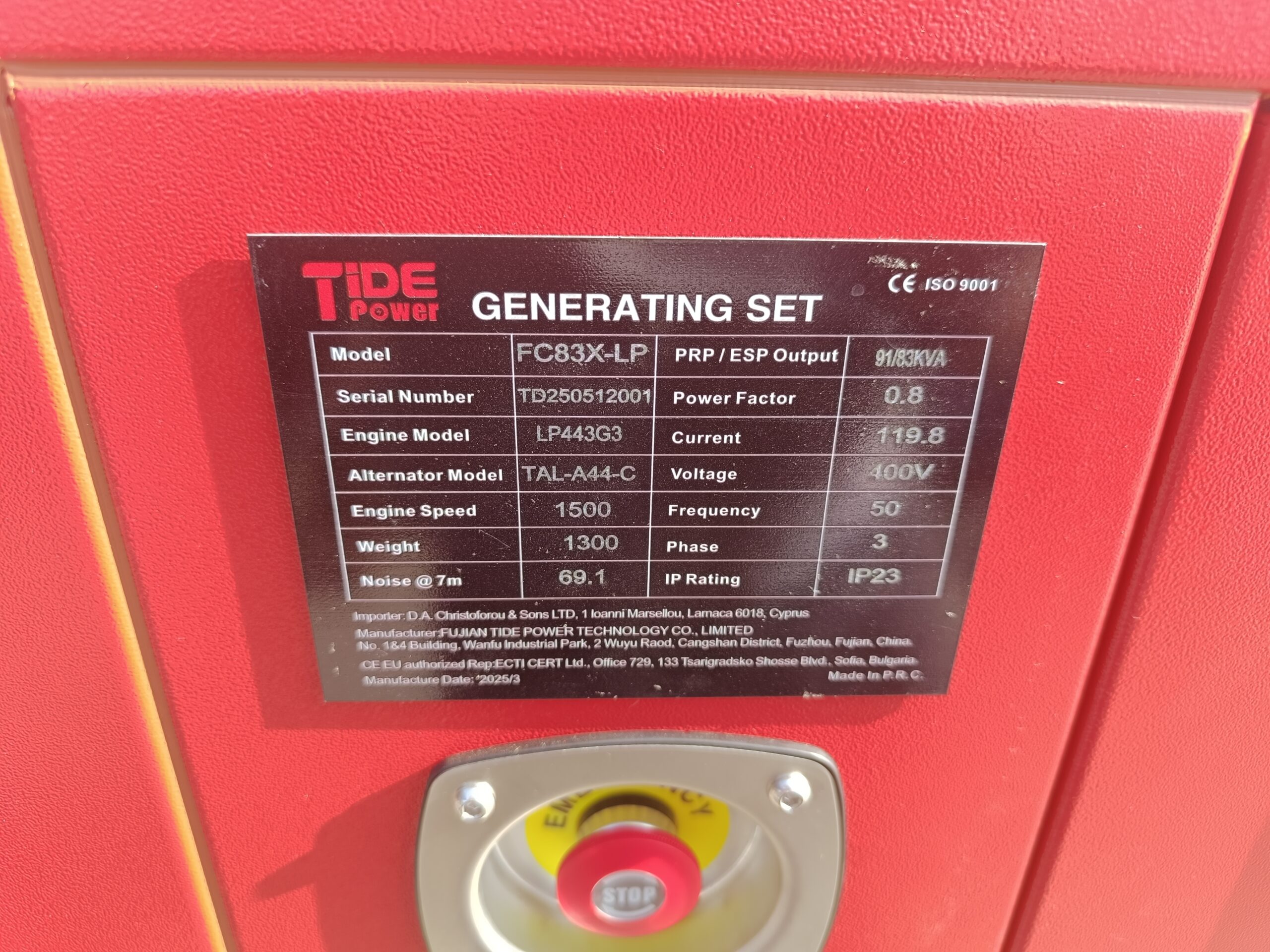

Technical specifications
| Model | FC83X-SA |
|---|---|
| Prime Power (PRP) | 66 kW / 83 kVA |
| Standby Power (ESP) | 73 kW / 91 kVA |
| Current @ 400V | 119.1 A |
| Breaker | 4-pole 125A MCB |
| Fuel tank | 189 L (built-in base tank) |
| Runtime @ 75% | 14 h |
| Battery | 24V lead-acid AGM |
| Noise | 68.1 dB(A) @ 7 m |
| Dimensions (L×W×H) | 2500 × 1050 × 1400 mm |
| Net weight | 1300 kg |
| Ambient temperature | Up to 55°C |
Warranty
Manufacturer warranty: 24 months or 2000 operating hours (whichever occurs first), subject to correct installation/operation and scheduled maintenance.
