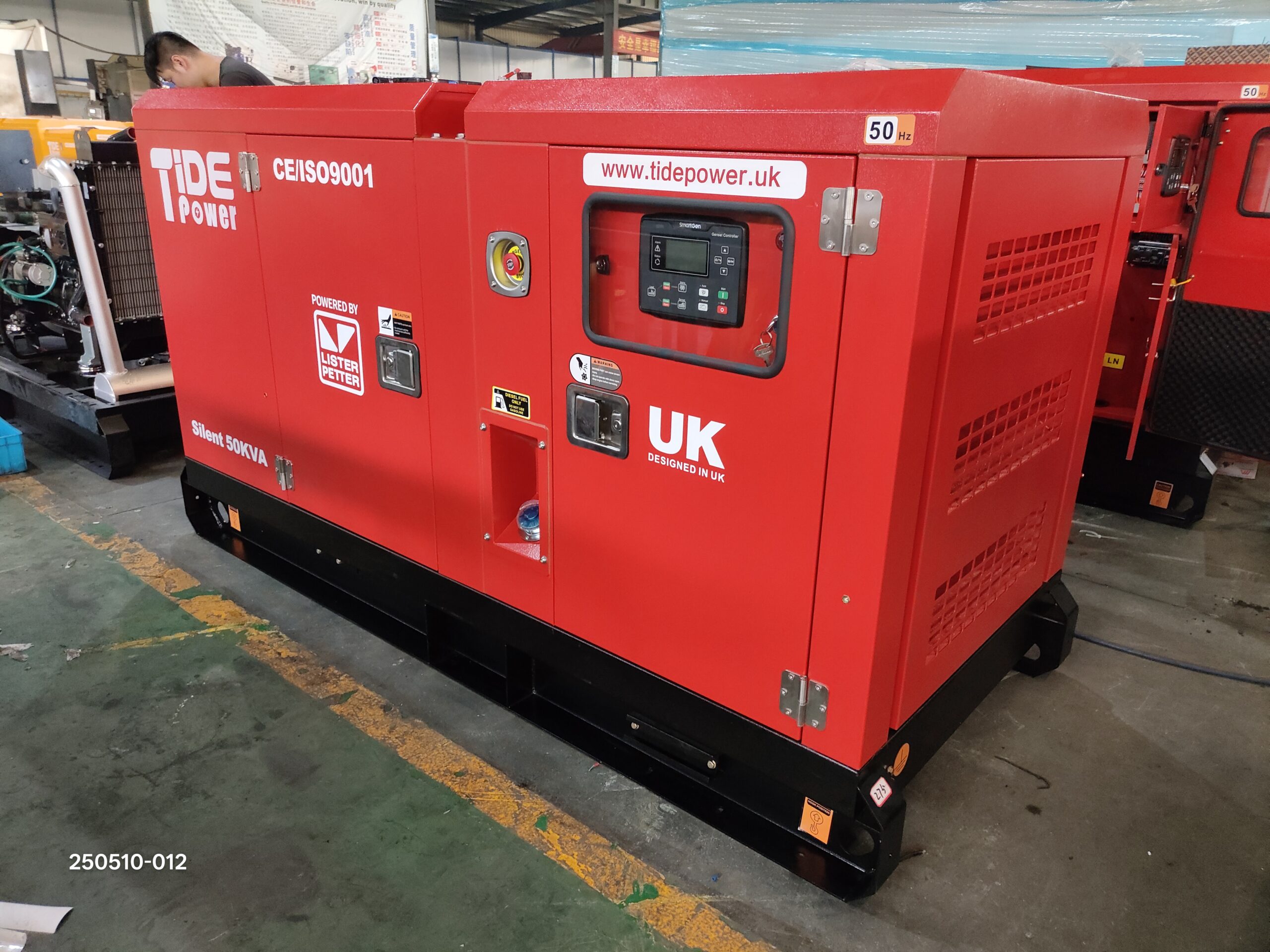

The FC50X-SA offers higher capacity in a quiet canopy format, suitable for businesses and facilities that need reliable standby power. SmartGen control provides protection and monitoring, while the integrated base tank supports practical runtime.
Key highlights
- Prime Power (PRP): 40 kW / 50 kVA
- Standby Power (ESP): 44 kW / 55 kVA
- Current @ 400V: 72.2 A

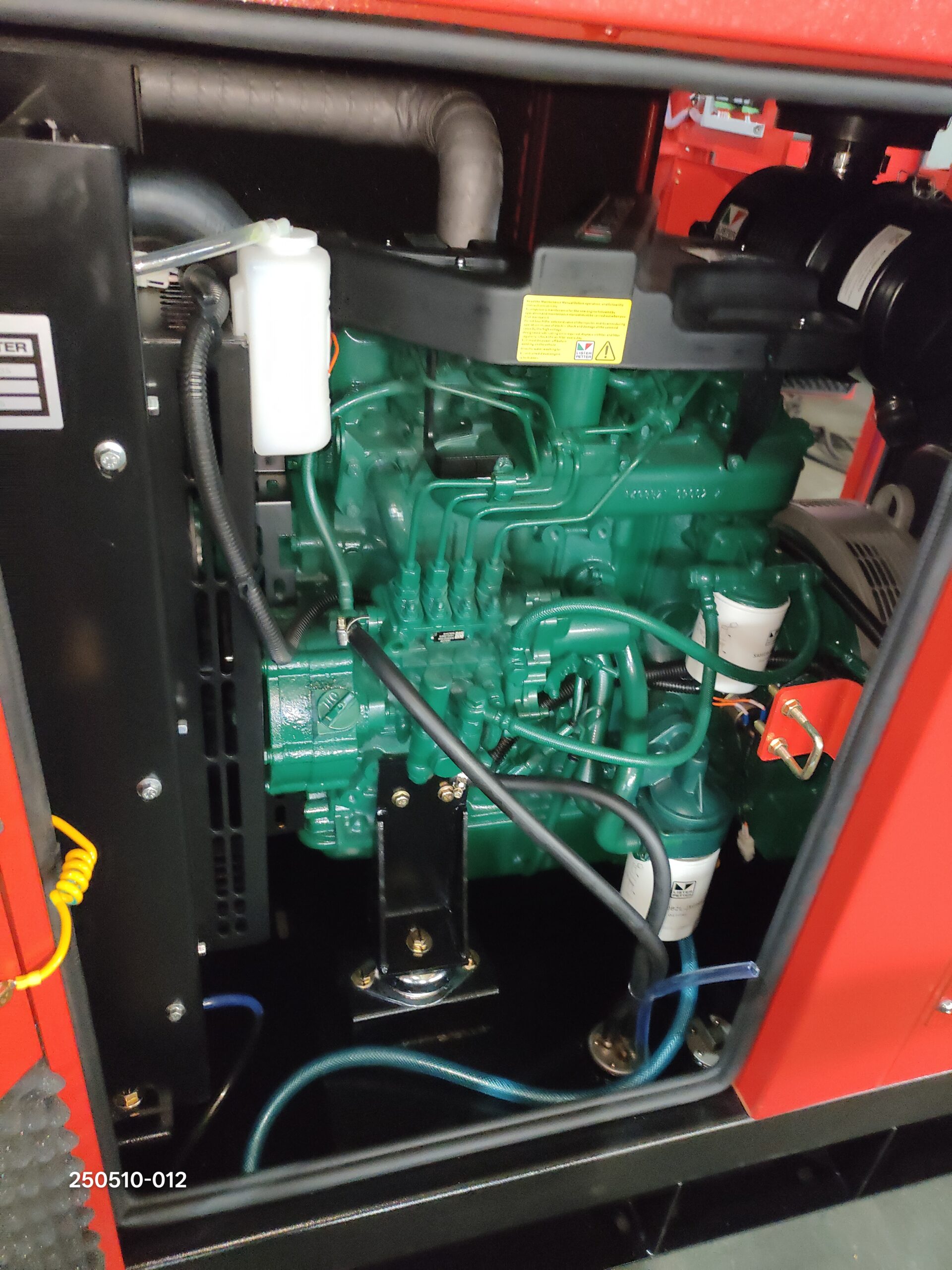

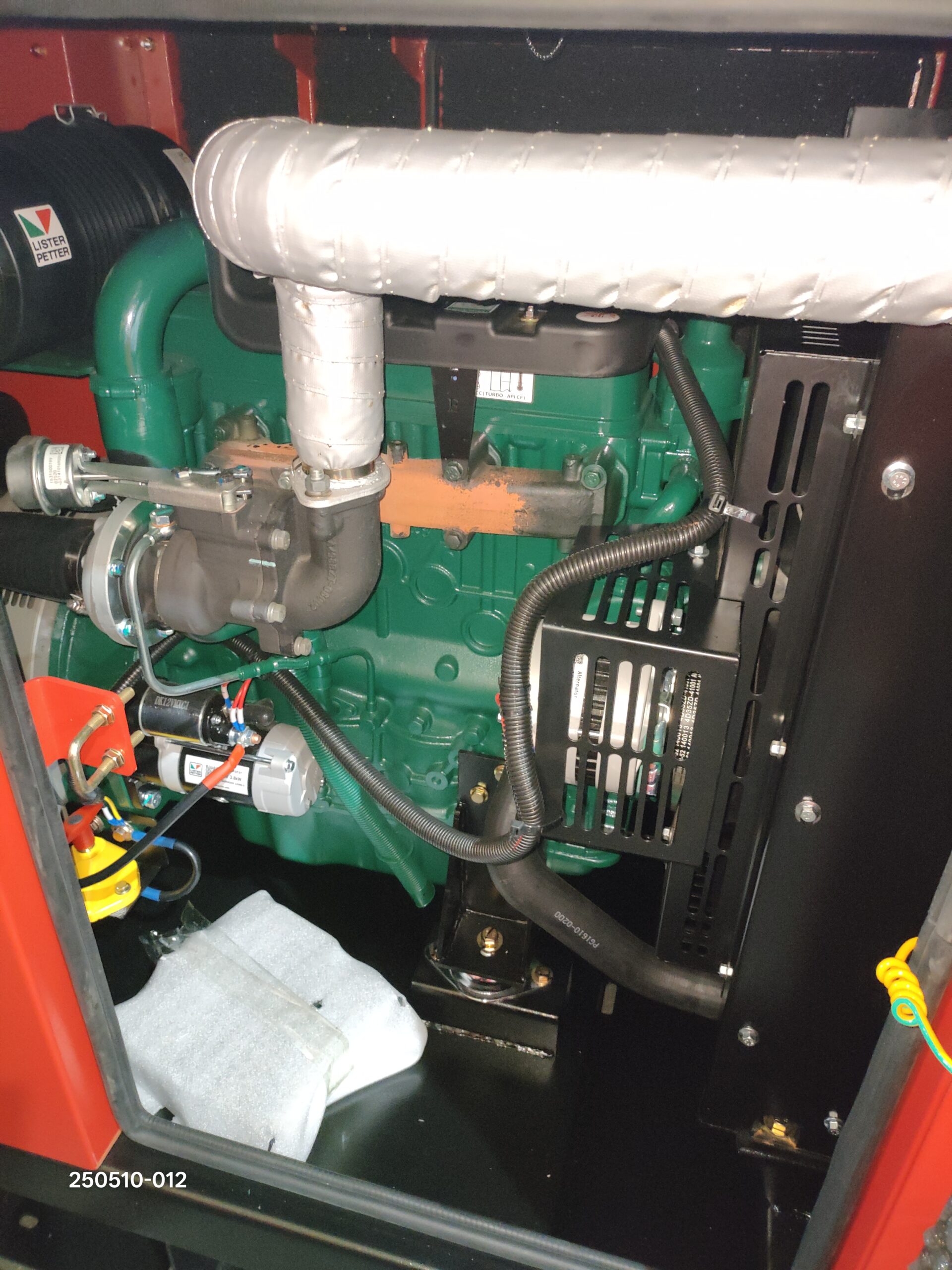

- Engine: Lister Petter UK SA435G1 (turbocharged)

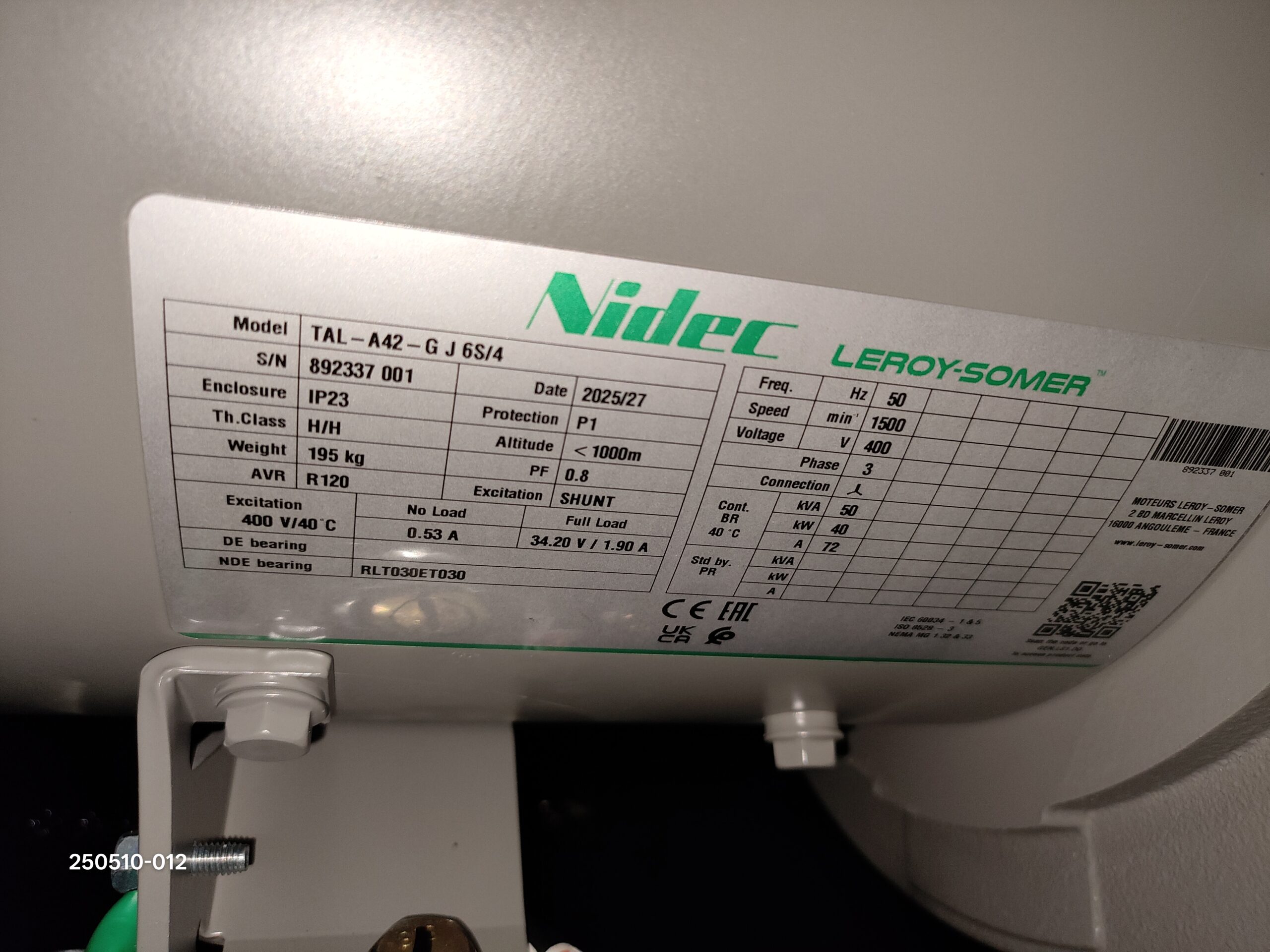

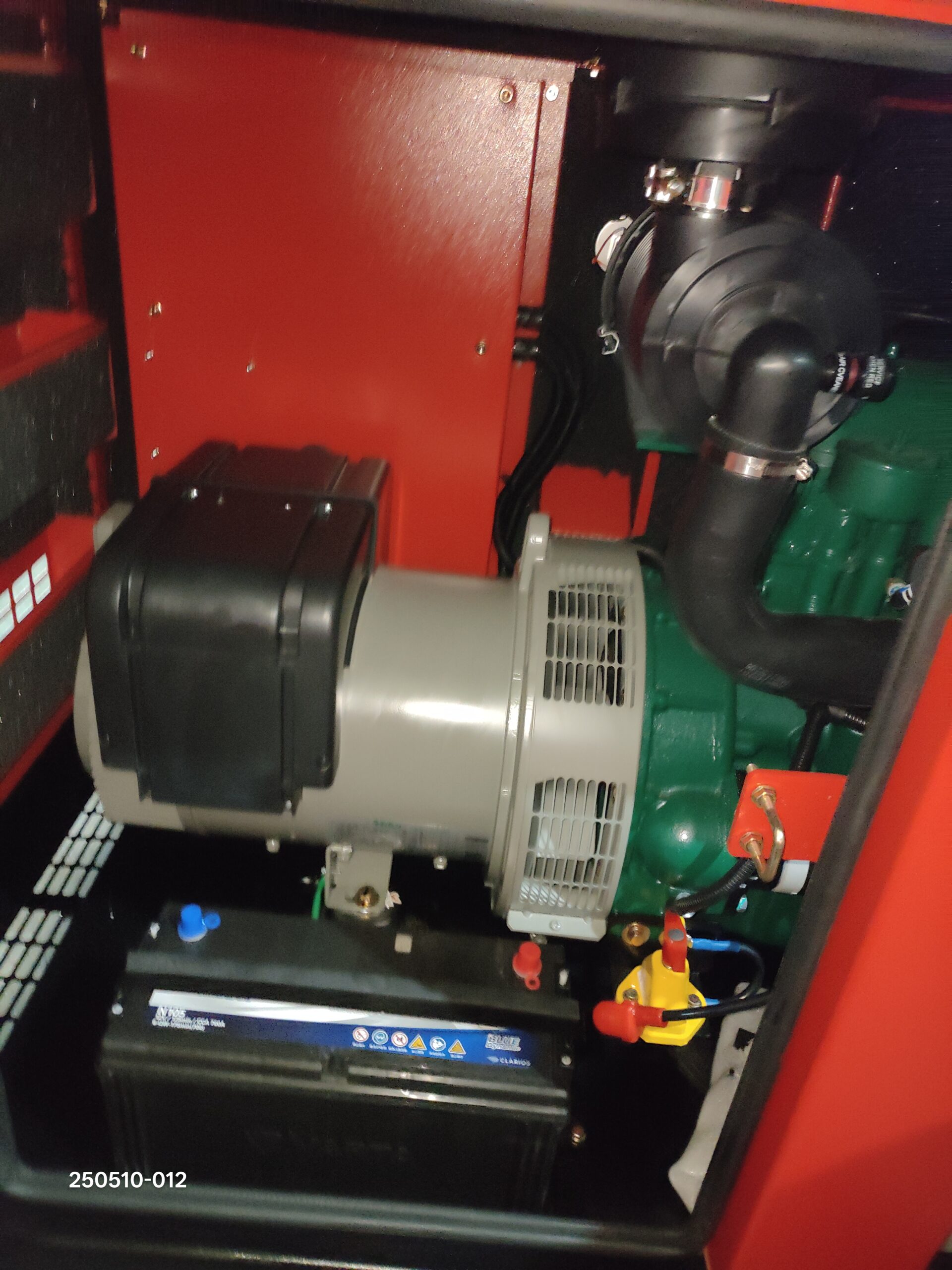

- Alternator: Leroy Somer TAL-A42-G (brushless, self-exciting)

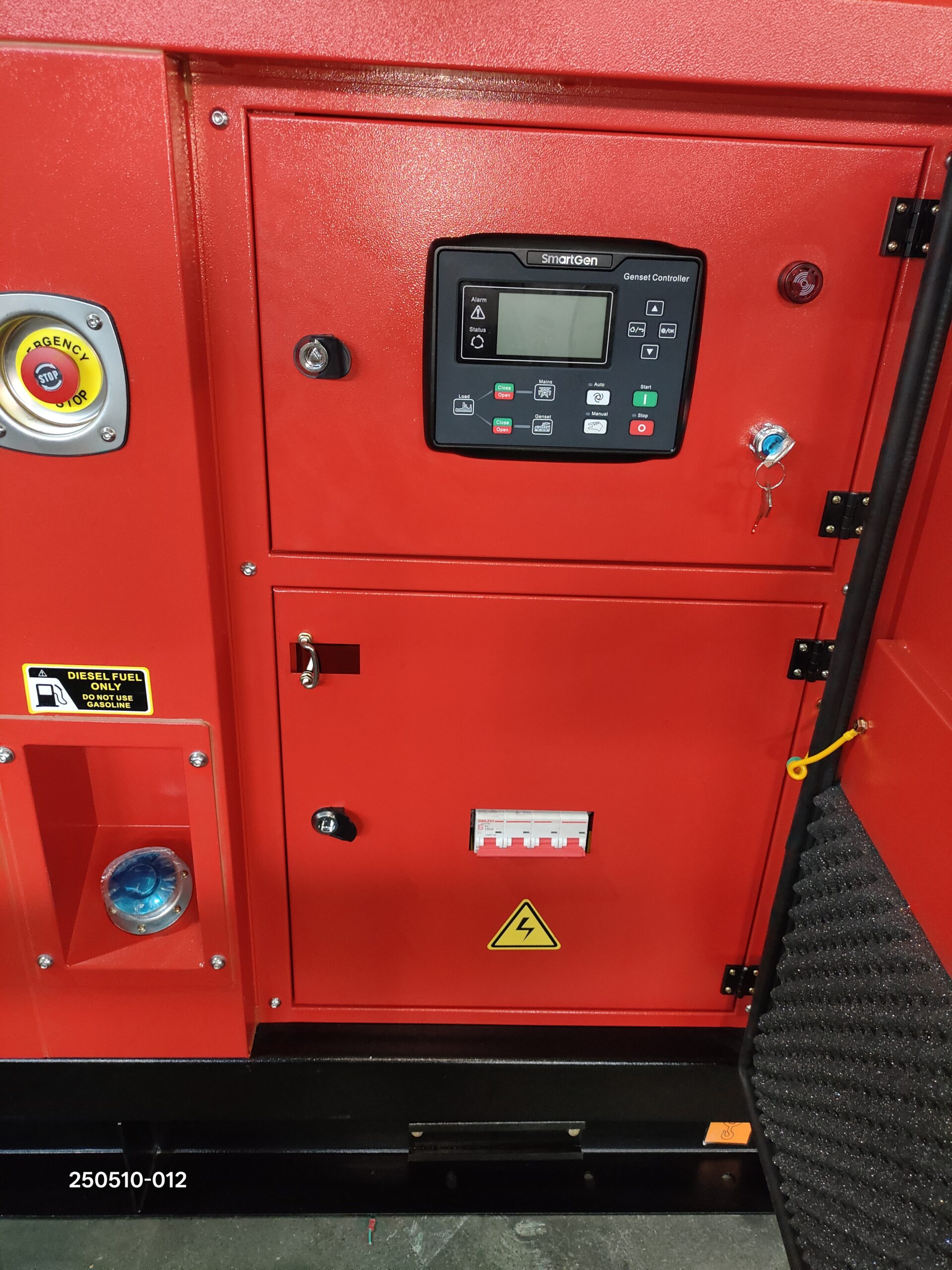

- Controller: SmartGen HGM6120N-4G
Fuel consumption (typical)
- 100% PRP: 12.26 L/h
- 75% PRP: 9.01 L/h
- 50% PRP: 5.95 L/h
- 25% PRP: 3.31 L/h
- 110% standby: 13.49 L/h
Technical specifications
| Model | FC50X-SA |
|---|---|
| Prime Power (PRP) | 40 kW / 50 kVA |
| Standby Power (ESP) | 44 kW / 55 kVA |
| Current @ 400V | 72.2 A |
| Breaker | 4-pole 100A MCB |
| Fuel tank | 135 L (built-in base tank) |
| Runtime @ 75% | 15 h |
| Battery | 12V lead-acid AGM |
| Noise | 69.3 dB(A) @ 7 m |
| Dimensions (L×W×H) | 2250 × 980 × 1230 mm |
| Net weight | 930 kg |
| Ambient temperature | Up to 55°C |
Warranty
Manufacturer warranty: 24 months or 2000 operating hours (whichever occurs first), subject to correct installation/operation and scheduled maintenance.
