Key highlights
- Prime Power (PRP): 32 kW / 40 kVA
- Standby Power (ESP): 35 kW / 44 kVA
- Current @ 400V: 57.7 A

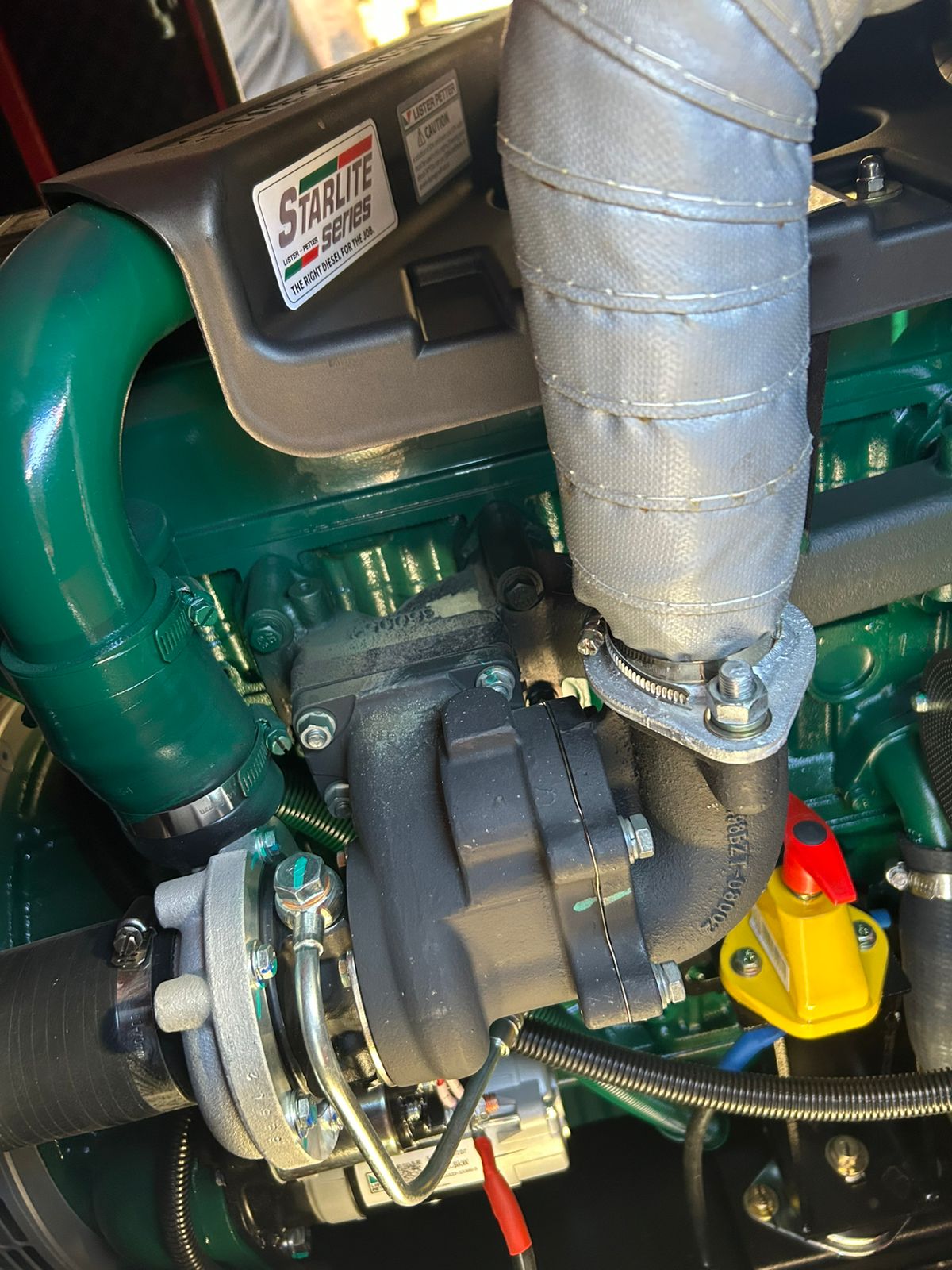

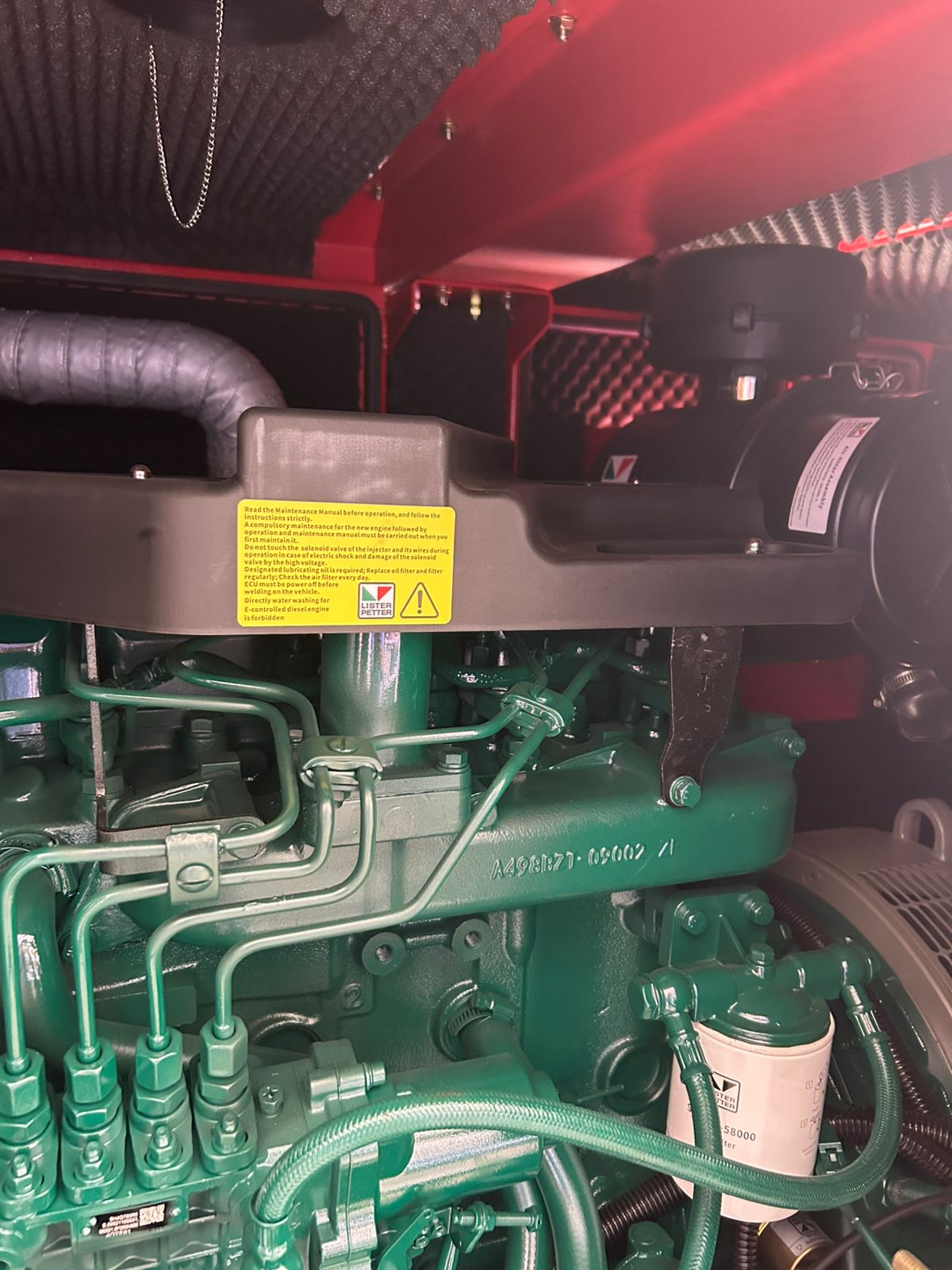

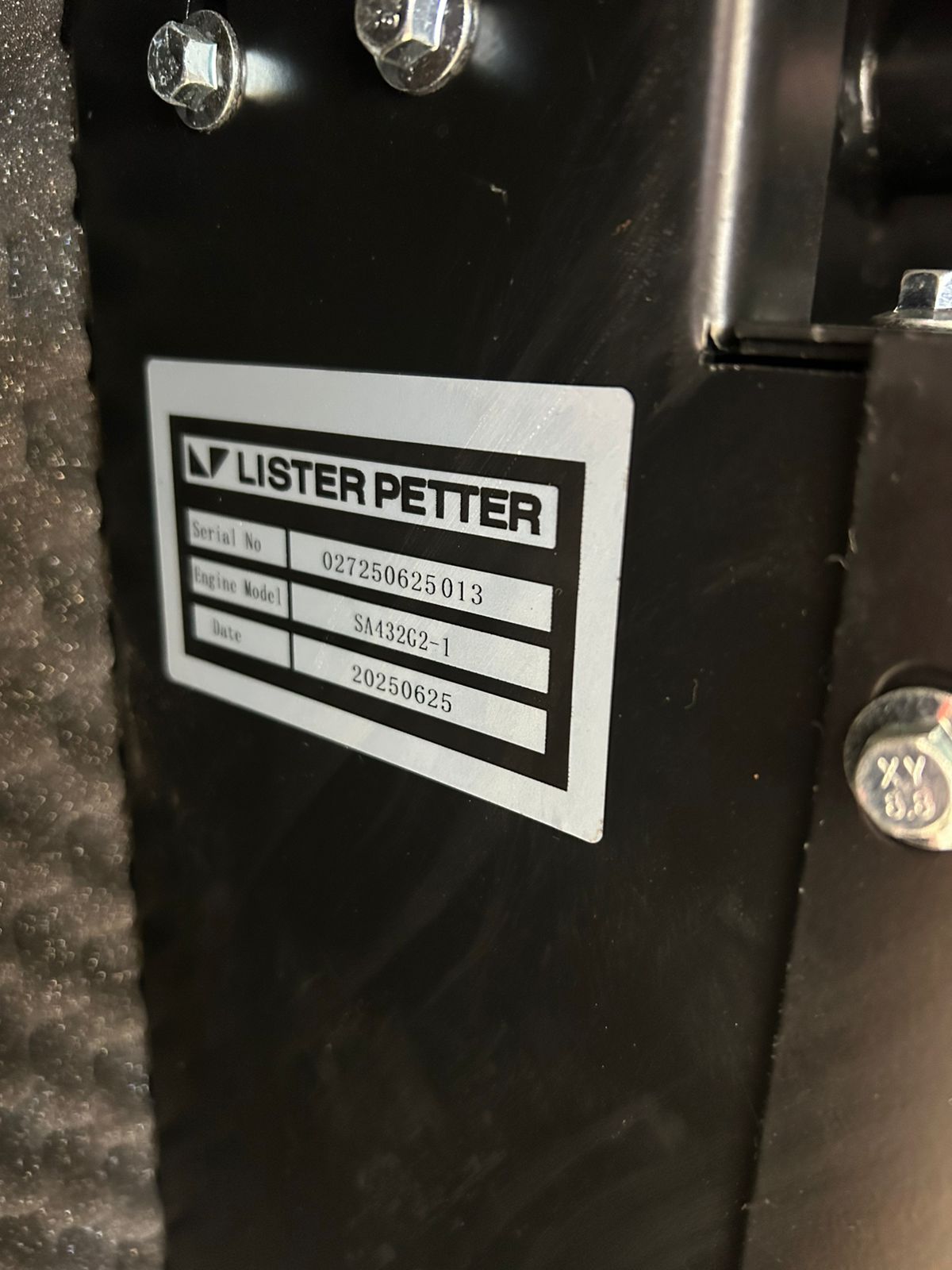

- Engine: Lister Petter UK SA432G2 (turbocharged)

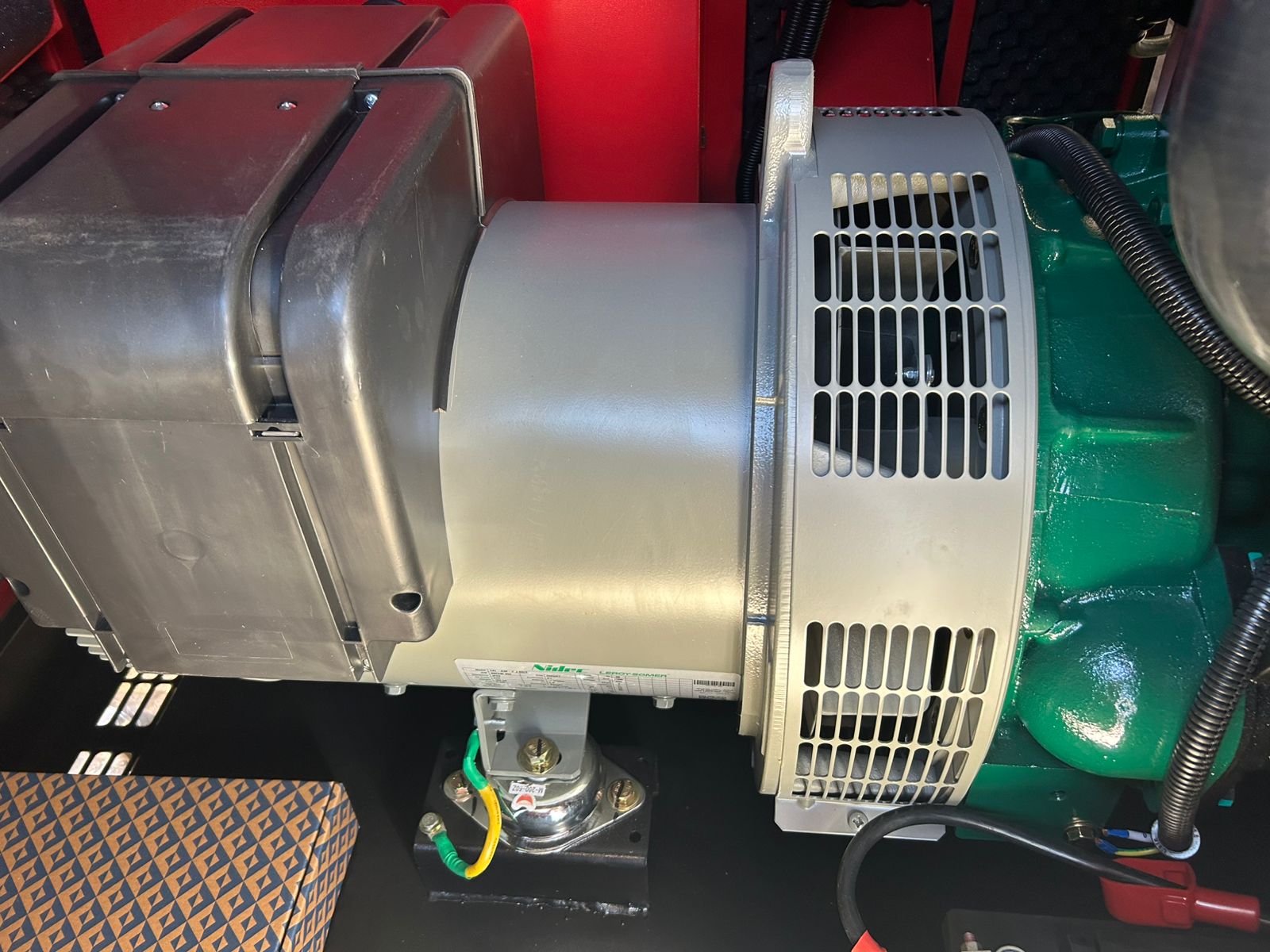

- Alternator: Leroy Somer TAL-A42-F (brushless, self-exciting)

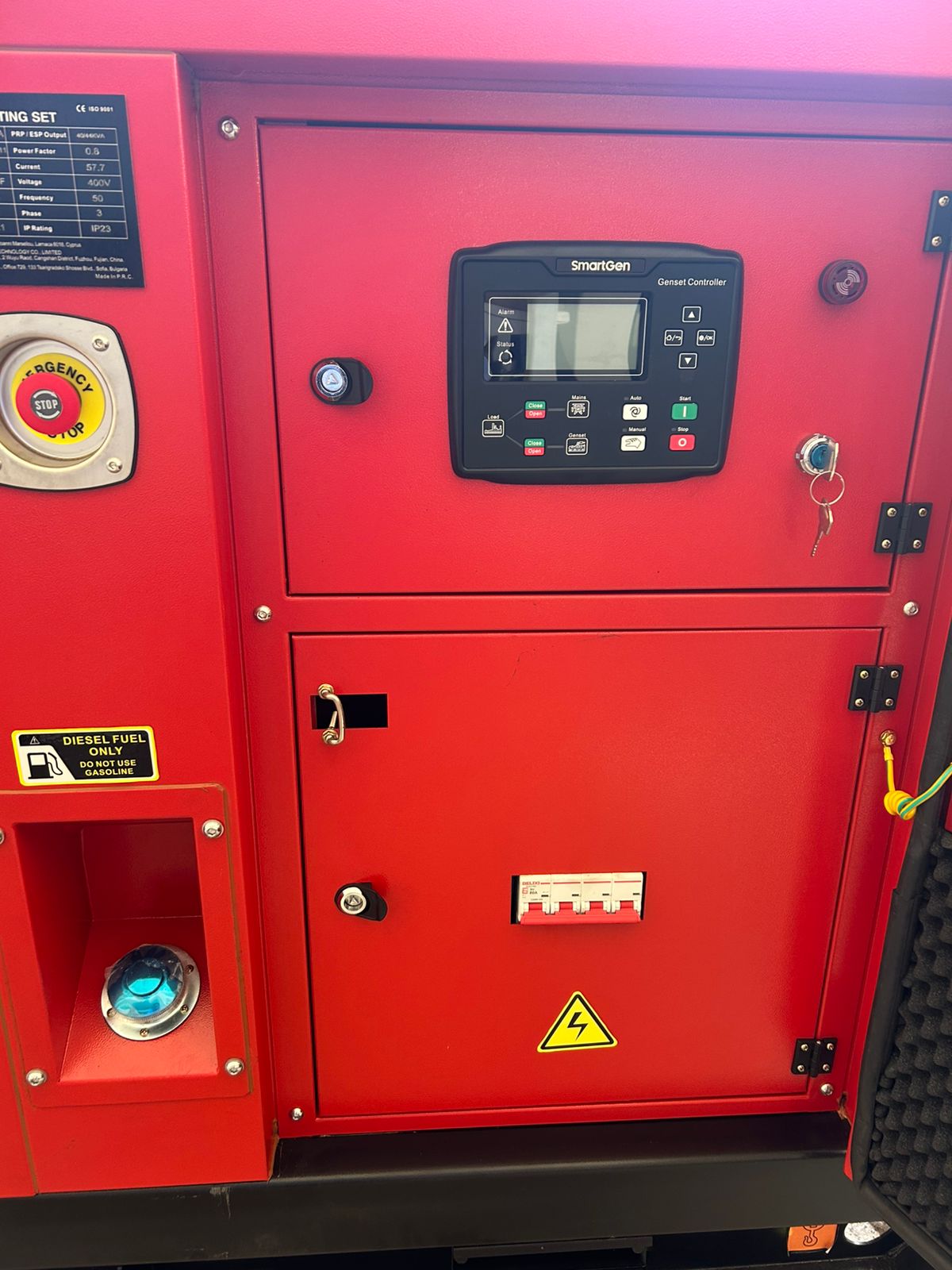

- Controller: SmartGen HGM6120N-4G
Fuel consumption (typical)
- 100% PRP: 9.73 L/h
- 75% PRP: 7.15 L/h
- 50% PRP: 4.72 L/h
- 25% PRP: 2.63 L/h
- 110% standby: 10.7 L/h
Technical specifications

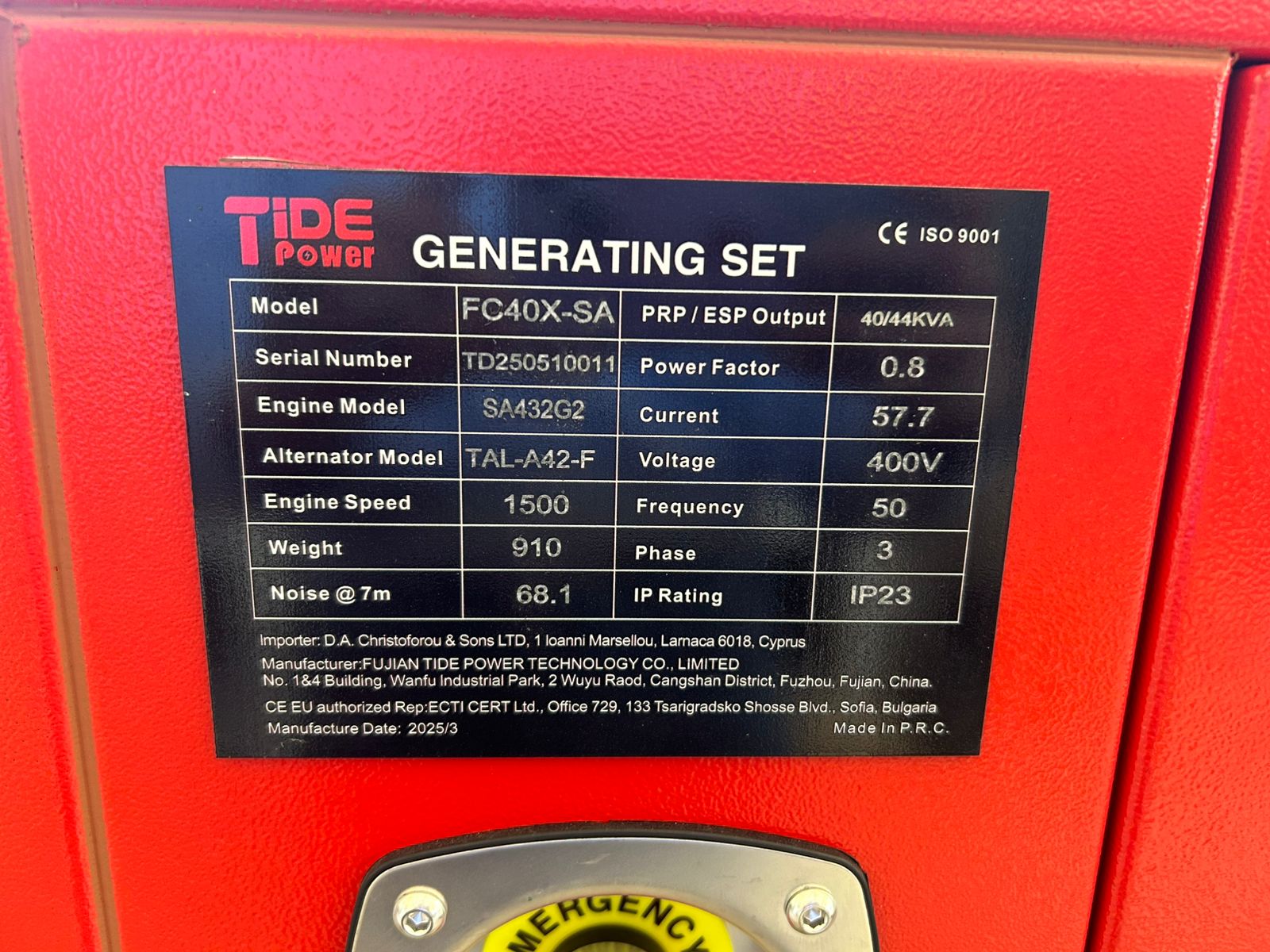

| Model | FC40X-SA |
|---|---|
| Prime Power (PRP) | 32 kW / 40 kVA |
| Standby Power (ESP) | 35 kW / 44 kVA |
| Current @ 400V | 57.7 A |
| Breaker | 4-pole 80A MCB |
| Fuel tank | 112 L (built-in base tank) |
| Runtime @ 75% | 16 h |
| Battery | 12V lead-acid AGM |
| Noise | 68.1 dB(A) @ 7 m |
| Dimensions (L×W×H) | 2200 × 980 × 1200 mm |
| Net weight | 910 kg |
| Ambient temperature | Up to 55°C |
Warranty
Manufacturer warranty: 24 months or 2000 operating hours (whichever occurs first), subject to correct installation/operation and scheduled maintenance.
