The Tide Power FB38 is a professional silent (enclosed canopy) diesel genset designed for low-noise operation and dependable backup power.
It delivers stable 50 Hz output at 1500 rpm with a SmartGen controller for monitoring and protection.
Highlights
- Silent canopy for reduced noise in residential and commercial settings.

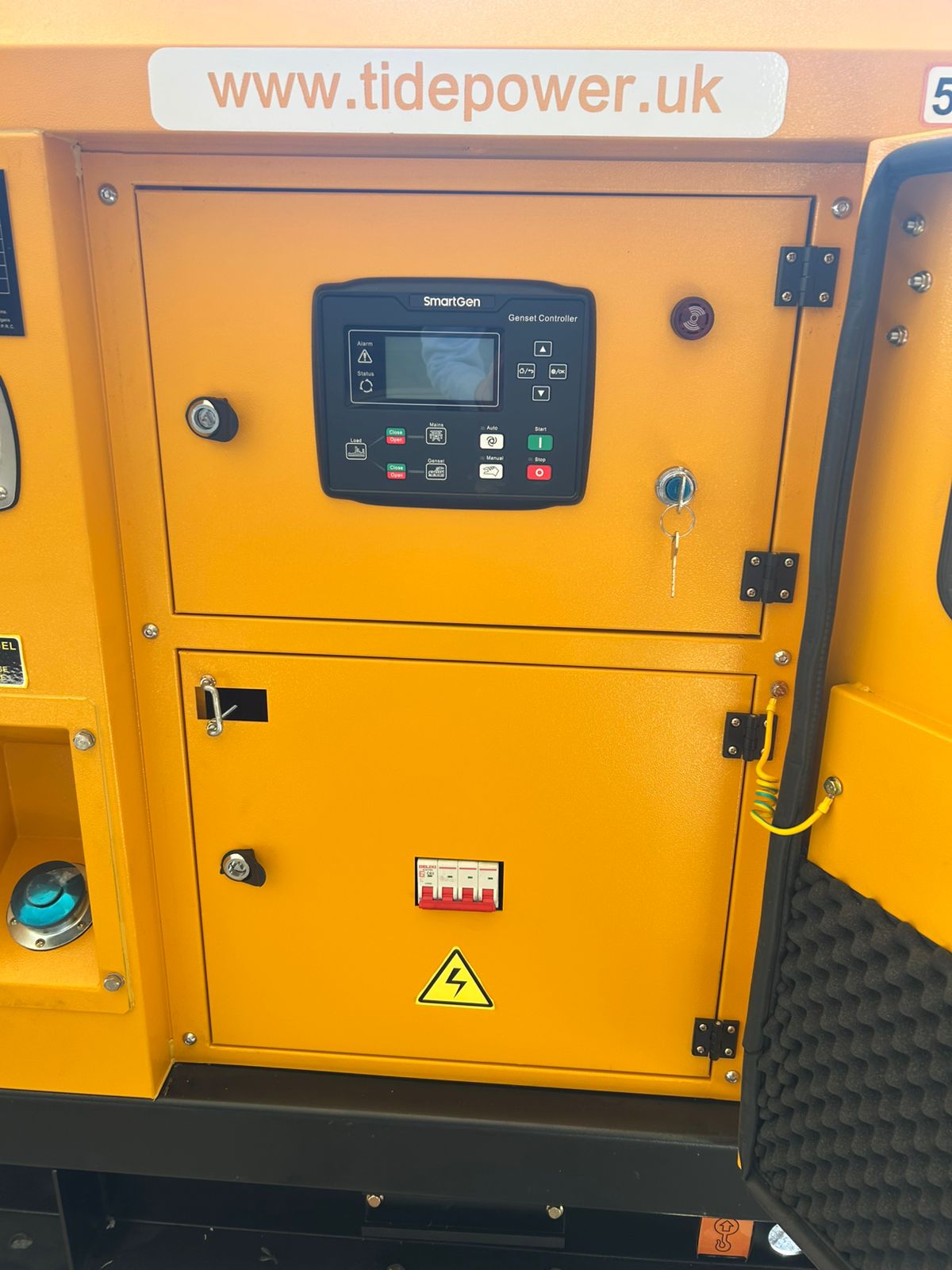

- SmartGen HGM6120N-4G controller (monitoring, alarms, protections).
- 4-pole 80A breaker (MCB) for 3-phase installations requiring neutral switching.
- Large base tank with long runtime: ~18 hours at 75% load.
- Designed for hot climates: rated ambient up to 45°C.
Technical specifications

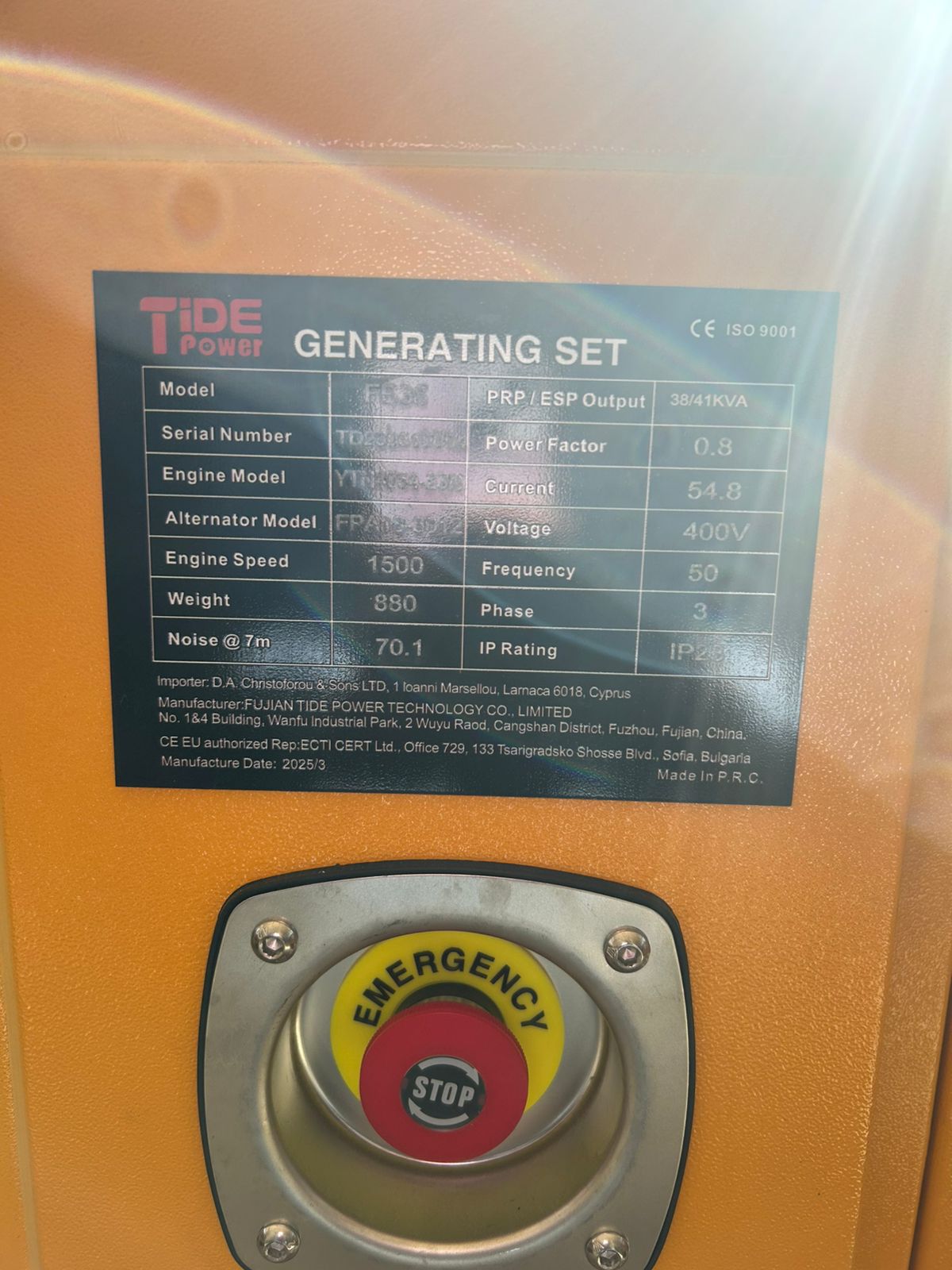

| Model | FB38 |
|---|---|
| Prime power (PRP) | 38 kVA / 30 kW |
| Standby power (ESP) | 41 kVA / 33 kW |
| Voltage / Phase | 400V / 3-Phase |
| Frequency / Speed | 50 Hz / 1500 rpm |
| Power factor | 0.8 |
| Current (at 400V) | ~54.1 A |

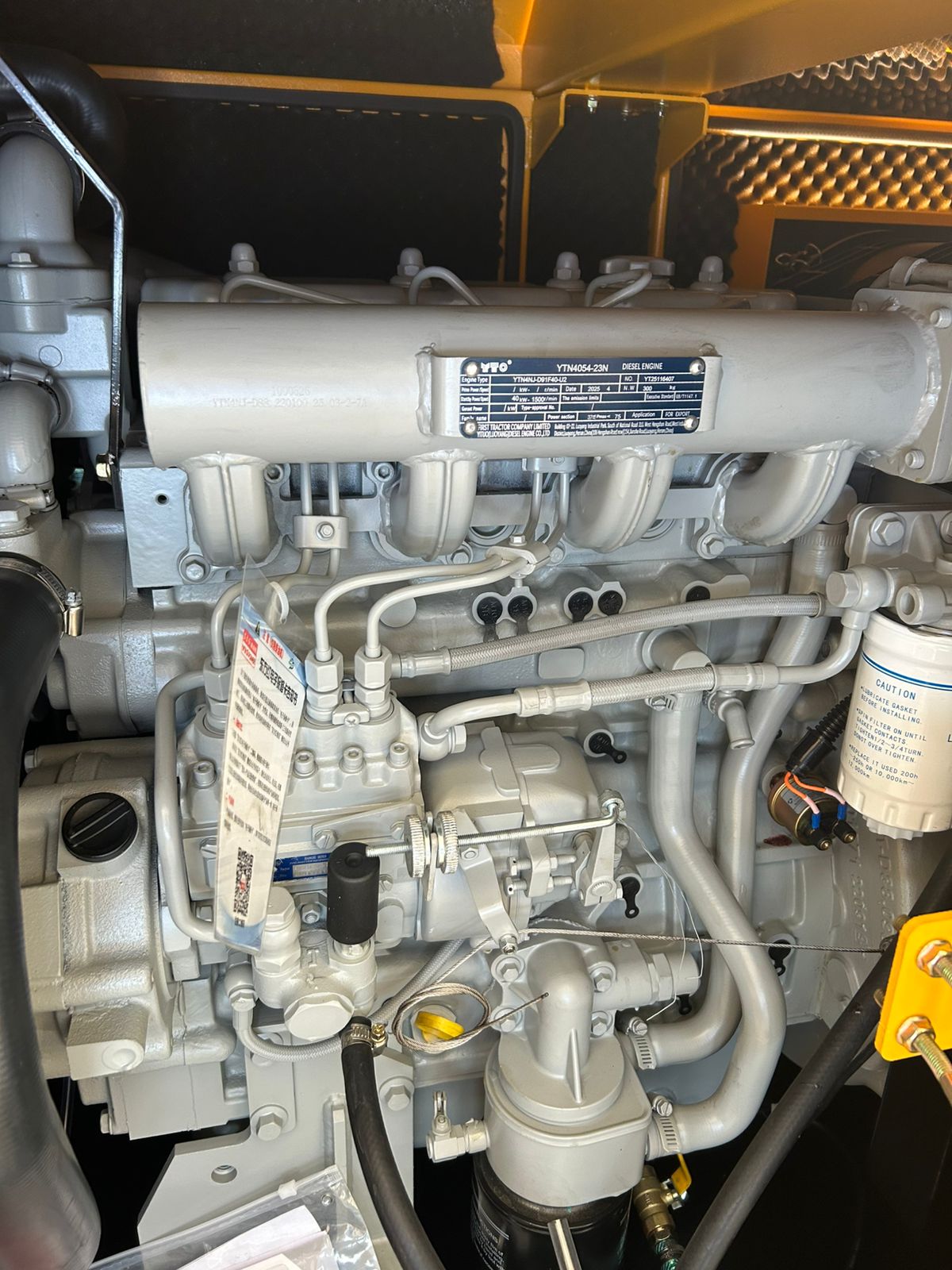

| Engine | Tide Power YTO YTN4054-23N |
| Alternator | Tide Power FPA18-3012 |
| Control panel | SmartGen HGM6120N-4G |
| Breaker | 4-pole 80A MCB |
| Fuel tank | 112 L |
| Runtime | ~18 h @ 75% load |
| Noise | ~70.1 dB(A) @ 7 m |
| Dimensions | 2200 × 980 × 1200 mm (L×W×H) |
| Net weight | ~880 kg |
Fuel consumption (reference)
- 100% prime power: ~7.60 L/h
- 75% prime power: ~5.59 L/h
- 50% prime power: ~3.69 L/h
- 25% prime power: ~2.05 L/h
- 110% standby power: ~8.36 L/h
Need a different kVA?
We stock popular sizes and can supply larger kVA sets on request. If you tell us your load (kW/kVA), phase, and whether you need ATS/changeover, we can guide you to the correct configuration.
