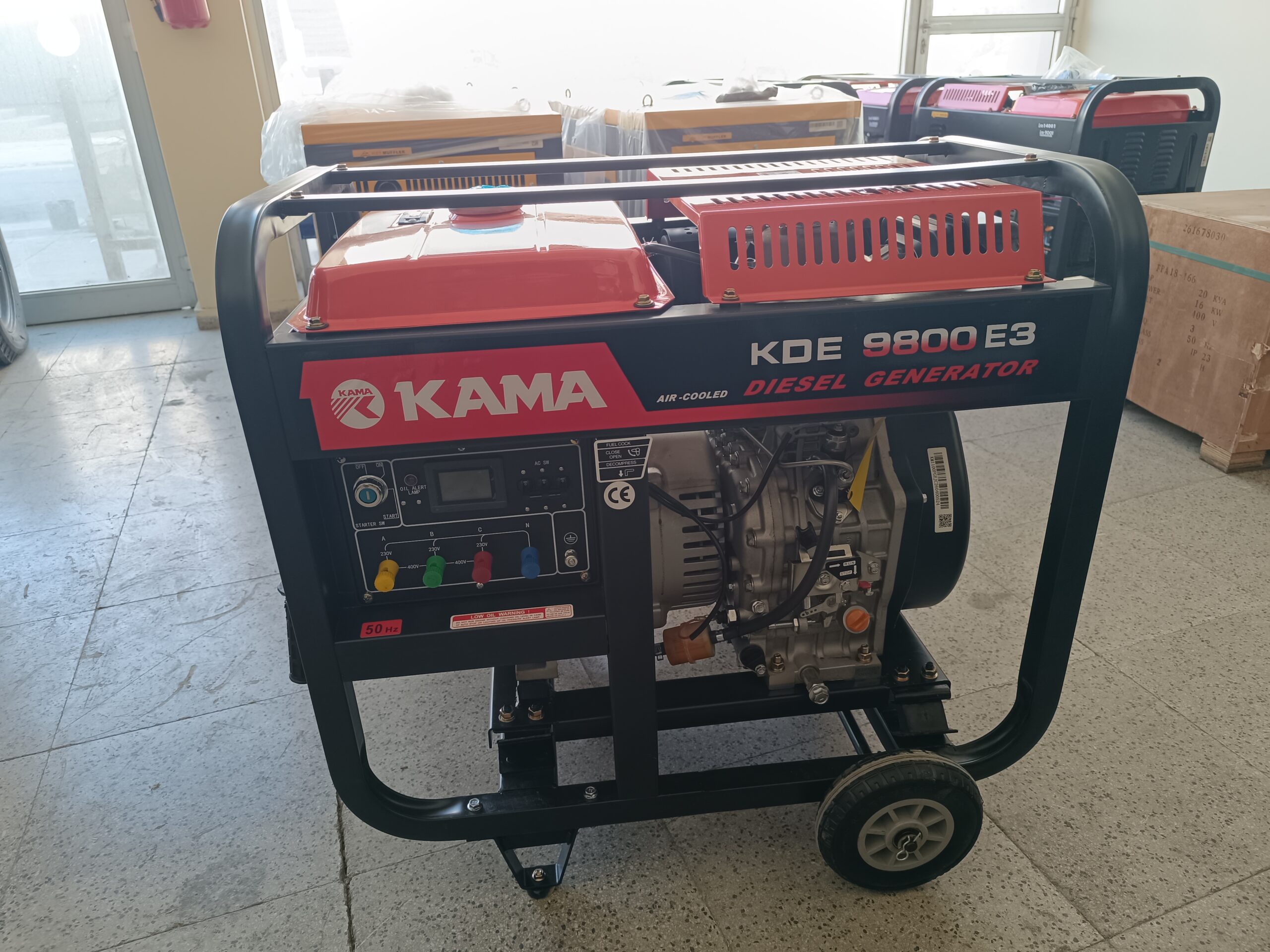

The KAMA KDE9800E3 is an open-frame portable diesel generator for site, farm and workshop equipment requiring a three-phase supply. It is supplied and supported locally from Larnaca.
Key features

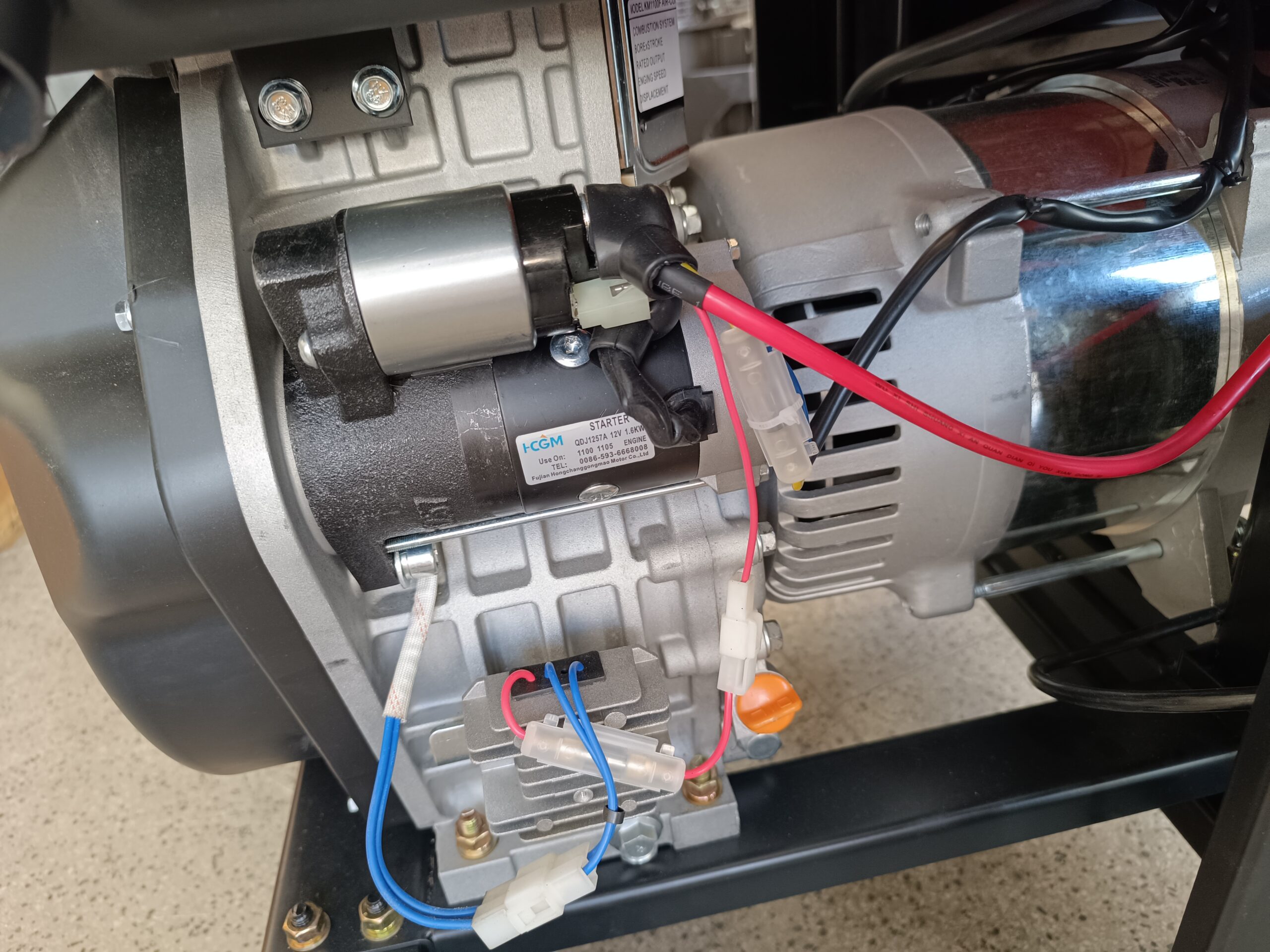

- Electric start
- AVR voltage regulation

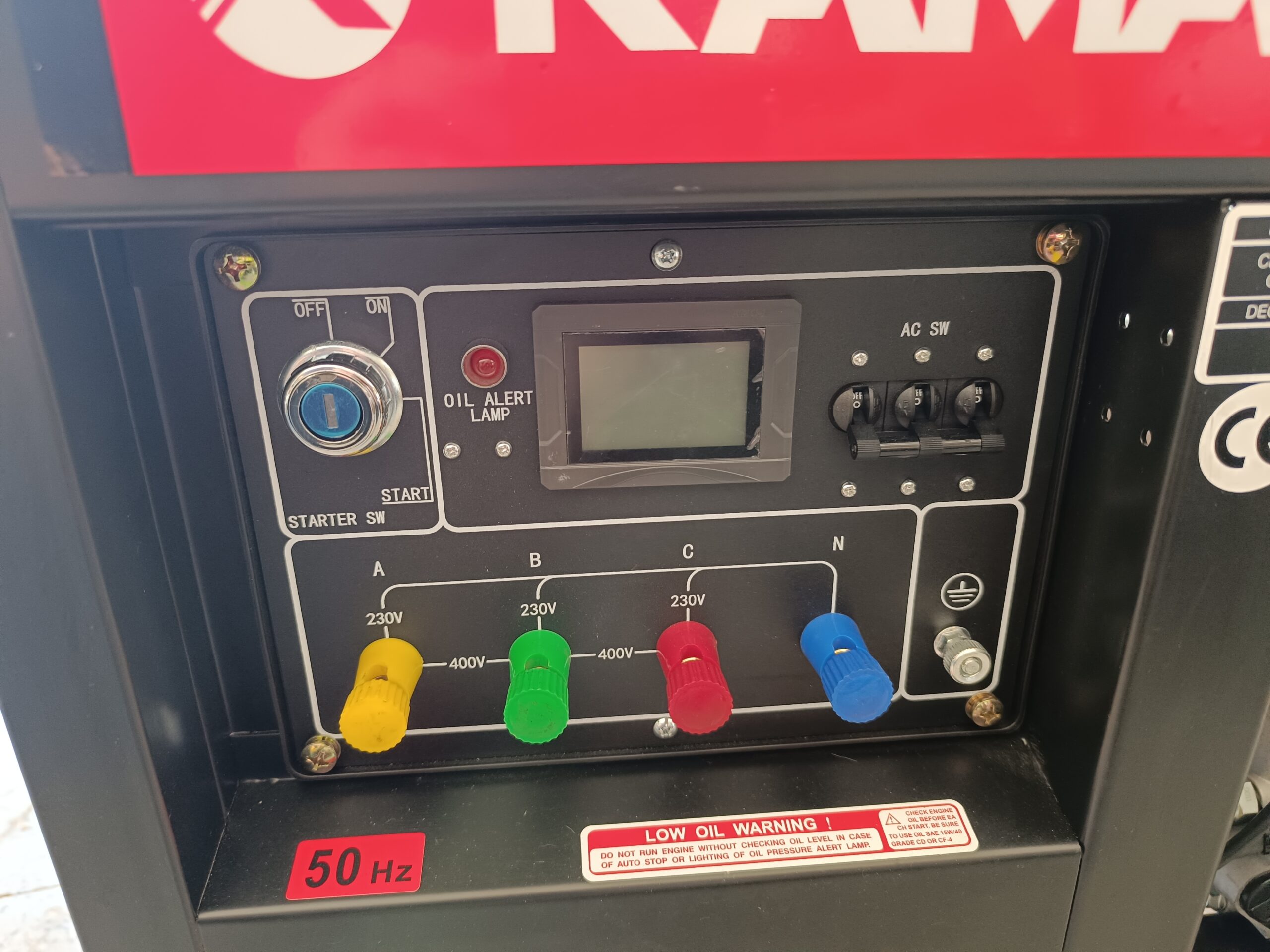

- Terminal-post output and overload protection
- Open-frame design for easy access
Basic specifications
- Rated output: 10 kVA / 8 kW total at 50 Hz (three-phase, power factor 0.8)
- Voltage: 400/230 V three-phase

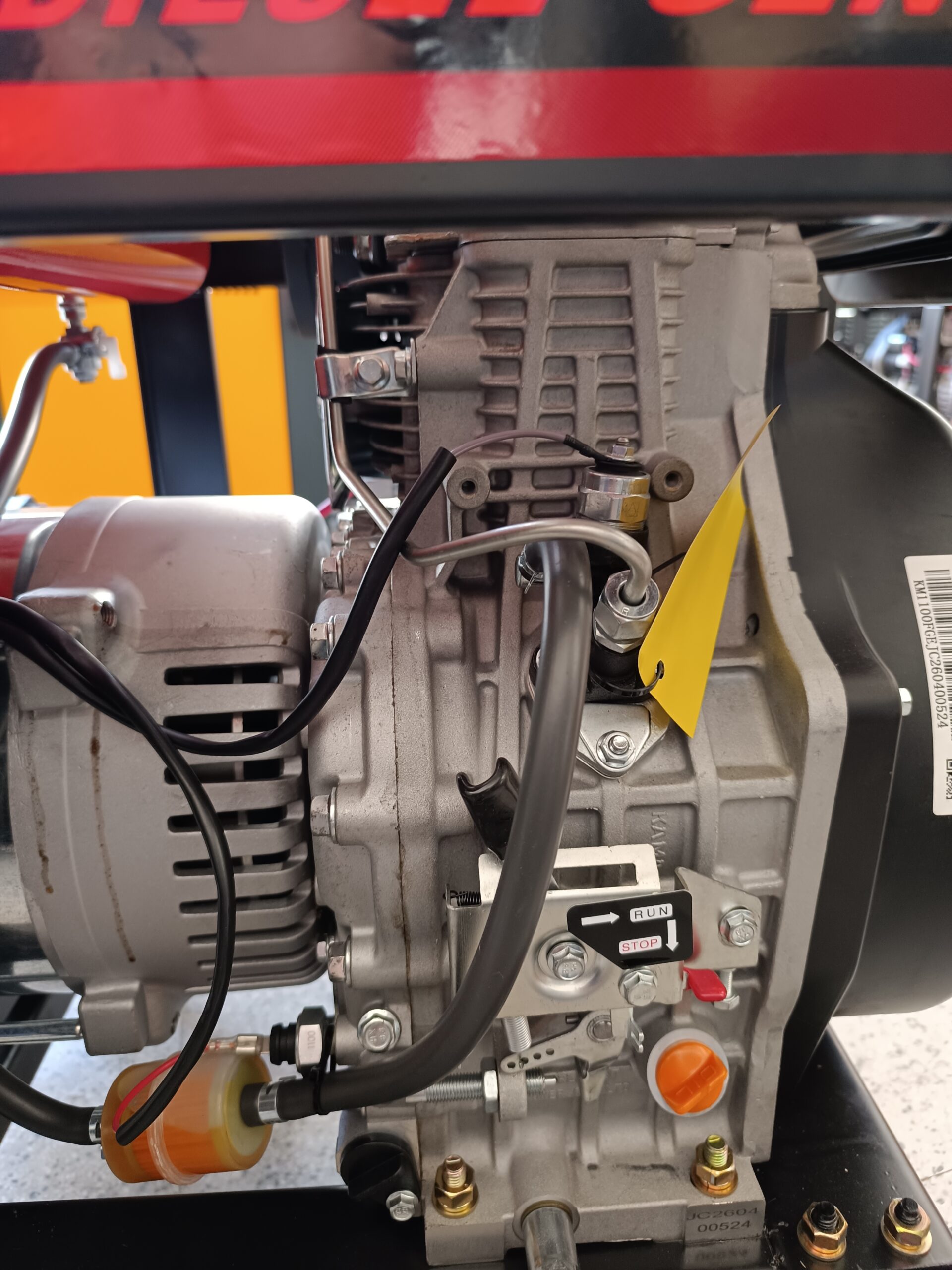

- Engine: KAMA KM1100FE diesel
- Speed: 3000 rpm
- Fuel tank: 25 L
- Manufacturer noise figure: 92 dB(A) at 7 m
- Net weight: approximately 145 kg
The three-phase rating is for the whole generator, shared across the phases. The full 8 kW is not available from one 230 V phase. Ask us to check the load and phase balance.
For a full spec sheet or help sizing this generator for your application, please contact us.
